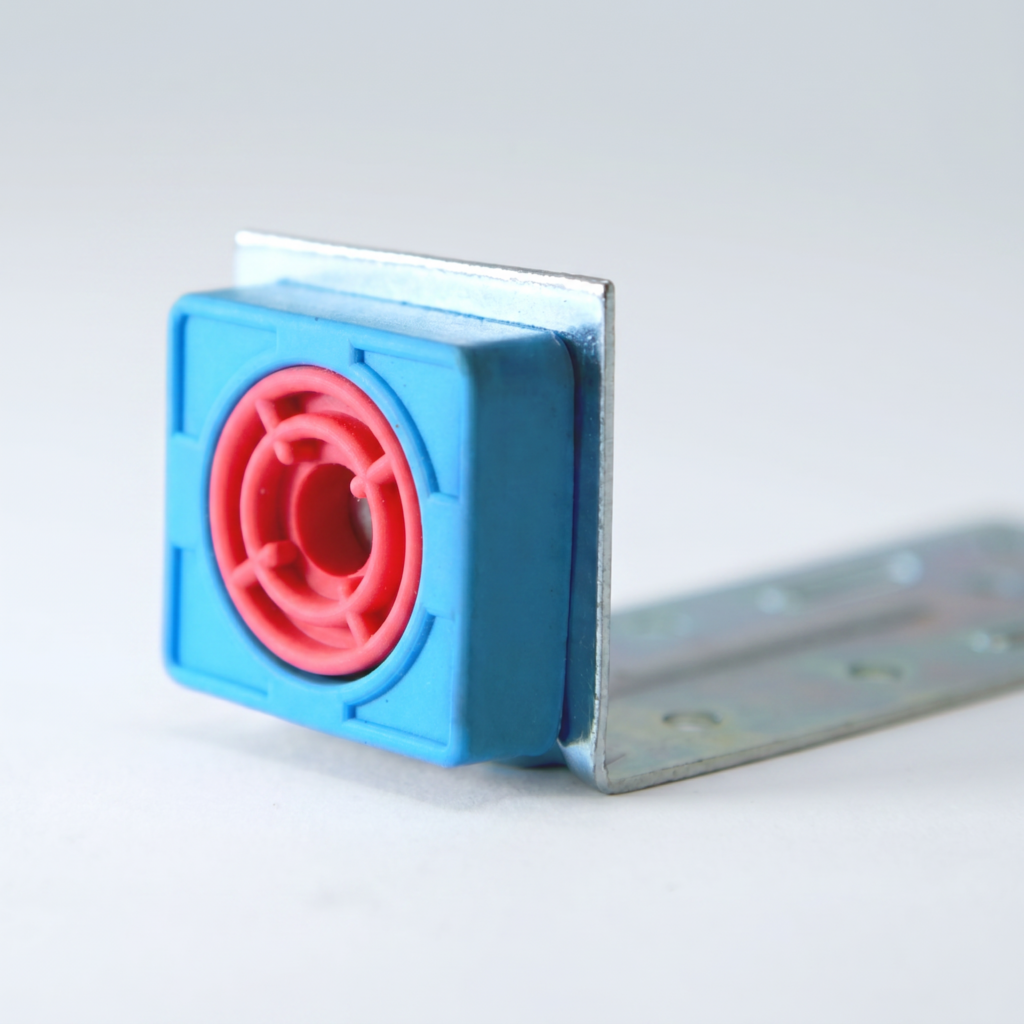

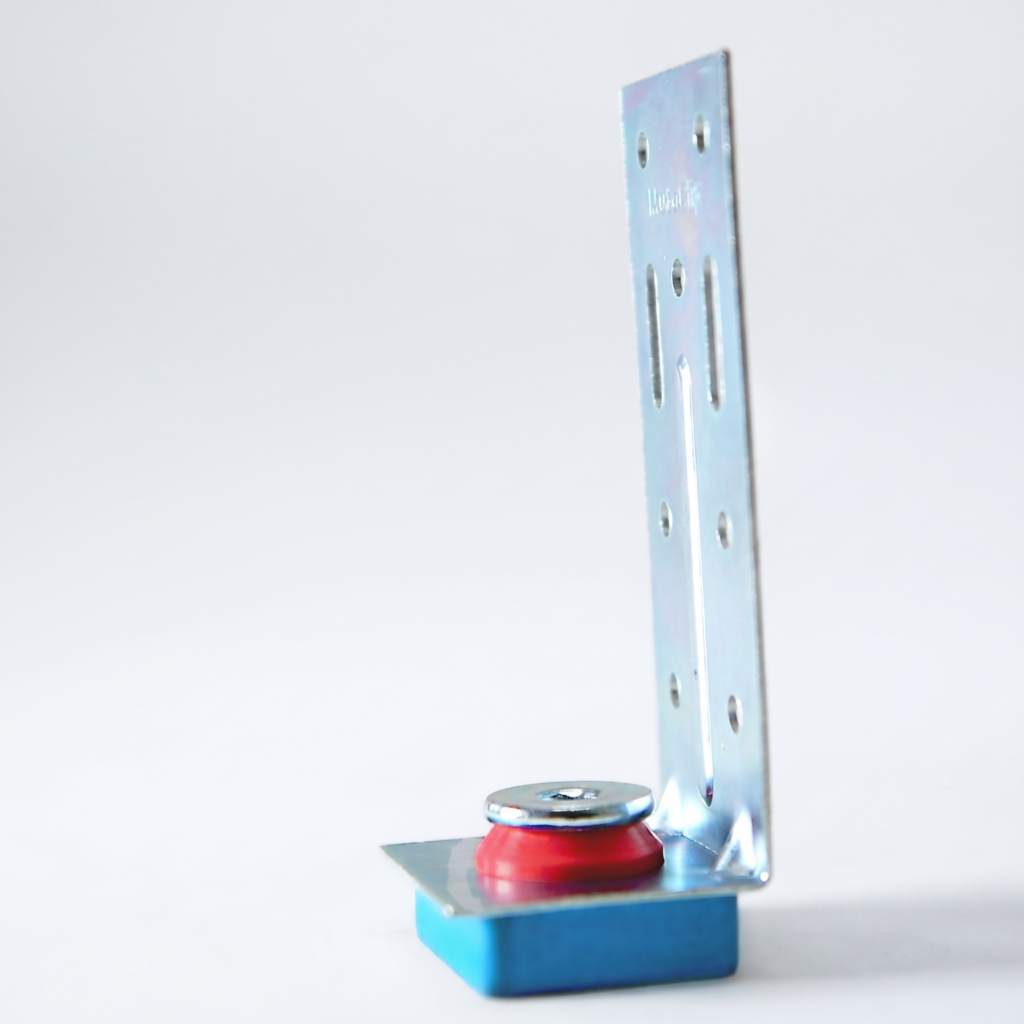

MuteClip MP Bracket is a multi-profile acoustic isolation bracket designed for MF ceiling systems, metal furring ceilings and acoustic frame tie-in details. It is used to help reduce airborne noise, impact noise and vibration transfer by isolating the new ceiling or frame structure from the existing building structure.
The MuteClip MP uses a dual-density rubber/silicone isolation element that acts as a shock absorber around the fixing and metal bracket. This helps reduce vibration transfer through the fixing point, improving the acoustic performance of the full ceiling or wall system.
MuteClip MP Brackets are mainly used as acoustic hangers for metal furring ceiling systems. They can also be used to brace stud frames or tie-in independent frames where an isolated acoustic connection is required.
They are commonly used in flats, apartments, offices, studios, music rooms, home cinemas, refurbishment projects, conversion projects and commercial acoustic upgrades.
The MuteClip MP Bracket is fixed to the existing structure using suitable fixings. A compatible metal furring or MF ceiling system is then connected to the bracket, creating a decoupled support frame for plasterboard or acoustic board layers.
The isolation element within the bracket helps reduce vibration passing from the existing structure into the new ceiling or wall frame. This separation helps improve the system’s ability to reduce sound transfer.
MuteClip MP Brackets can help reduce both airborne noise and impact noise when used as part of a complete acoustic system.
Airborne noise includes voices, TV noise, music and general sound transfer between rooms or properties.
Impact noise includes footsteps, dropped items, furniture movement and vibration passing through floor and ceiling structures.
The final result will depend on the full build-up, including the existing structure, bracket spacing, metal furring system, board layers, acoustic insulation, perimeter sealing and flanking noise paths.
MuteClip MP Brackets are suitable for acoustic applications including:
MuteClip MP is useful where an acoustic ceiling or frame system needs to be supported while still reducing vibration transfer through the fixing points.
It is especially useful for MF ceiling systems, where the ceiling grid needs to be hung from or tied back to the existing structure. The bracket provides a controlled acoustic isolation point, helping reduce direct contact between the new ceiling/frame and the original structure.
The MuteClip LP is the low-profile version, mainly used where ceiling height is limited.
The MuteClip MP is the multi-profile version, designed for MF acoustic ceiling hangers, metal furring ceilings, bracing stud frames and tie-in details.
The right option depends on the ceiling design, available height, substrate, framing system and acoustic target.
MuteClip MP Brackets are not a complete soundproofing system on their own. They should be used with the correct MF ceiling or metal furring system, suitable acoustic plasterboard or soundproofing boards, acoustic mineral wool, acoustic sealant and correct perimeter detailing.
The number of brackets required depends on ceiling size, framing layout, board weight, loading requirement and acoustic specification. Always check the correct layout before installation.
If you are unsure whether MuteClip MP is the right bracket for your project, please contact our team before ordering. We can help advise on the most suitable wall or ceiling soundproofing system for your structure.
MuteClip MP Bracket is a multi-profile acoustic isolation bracket used in MF ceiling systems, metal furring ceilings and isolated frame tie-in details. It is designed to reduce vibration transfer while supporting a complete acoustic ceiling or frame system.
| Product Name | MuteClip MP Bracket |
| Common Product Reference | MuteClip MP / Mute Clip MP / Multi-Profile Acoustic Ceiling Hanger |
| Product Type | Multi-profile acoustic isolation bracket / MF acoustic ceiling hanger |
| Pack Size | Single bracket unless otherwise stated |
| Application | MF ceilings, metal furring ceilings, acoustic suspended ceilings, stud frame bracing and frame tie-in details |
| Suitable For | Ceiling soundproofing systems, acoustic metal frame systems, independent frames, studios, flats, apartments and commercial refurbishments |
| Dimensions | 42mm x 45mm x 116mm |
| Maximum Load | 16kg / 36lb per clip according to supplier data |
| Isolation Material | Dual-density rubber/silicone acoustic isolator |
| Compatible Systems | Specified MF ceiling systems, metal furring ceiling systems and compatible acoustic framing systems |
| Main Noise Types | Airborne noise, impact noise and vibration transfer |
| Published Airborne Noise Reduction | Supplier data lists up to 60dB airborne reduction; final performance depends on full system build-up |
| Published Impact Noise Reduction | Supplier data lists up to 35dB impact reduction; final performance depends on full system build-up |
| Fixing Method | Fixed to a suitable structure using appropriate fixings for the substrate and system design |
| Substrate Compatibility | Timber, masonry, concrete and suitable structural substrates, subject to correct fixing and design |
| Part E Use | Can be used within suitable Part E-focused systems; confirm full tested system specification for compliance-led projects |
| Fire Rating | System-dependent — confirm the full tested ceiling or wall build-up before compliance-led use |
| Standalone Product? | No — should be used as part of a complete acoustic ceiling, wall or frame system |
MuteClip MP Brackets can be used in a range of acoustic applications, including:
MuteClip MP Brackets are used to reduce vibration transfer between the existing structure and the new metal frame or ceiling system. The isolation element helps buffer the connection point, reducing direct sound transmission through the bracket.
They are typically used where a new MF ceiling or metal frame needs to be supported, braced or tied back while maintaining acoustic separation.
MuteClip MP Brackets are acoustic isolation components, not complete soundproofing systems on their own. Published performance figures should be treated as system-dependent.
The final acoustic result will depend on the existing structure, bracket spacing, metal furring layout, board mass, insulation, fixing method, perimeter sealing, workmanship and flanking noise paths.
For Building Regulations, fire-rated or compliance-led projects, use the correct tested specification and seek project-specific acoustic advice where required.
Store MuteClip MP Brackets clean, dry and protected before installation. Check that the supporting structure is stable and suitable for fixing before fitting the brackets.
Do not install onto weak, loose, rotten or unstable substrates. Do not over-tighten fixings in a way that compresses or damages the acoustic isolation element.
MuteClip MP Brackets are installed as acoustic isolation hangers or frame tie-in brackets within MF ceiling, metal furring ceiling and acoustic frame systems. They help reduce vibration transfer between the existing structure and the new acoustic frame.
For best results, MuteClip MP Brackets should be installed as part of a complete acoustic system, using the correct bracket spacing, metal framing layout, board layers, insulation and acoustic sealing.
Check the existing structure before installation. The structure must be stable, dry and capable of supporting the full acoustic system, including brackets, metal framing, plasterboard layers and acoustic insulation.
Plan the full ceiling or frame layout before fixing the brackets. The number of brackets required depends on the ceiling size, frame design, board weight, loading requirement and acoustic specification.
Make sure the chosen fixings are suitable for the substrate. Fixing into timber, masonry and concrete will require different fixing types.
Make sure the installation area is ready. The substrate should be:
Repair weak timber, unstable masonry, damaged concrete, loose ceiling areas or unsuitable surfaces before installing the brackets.
Where the system requires cavity treatment, install acoustic mineral wool before the board layers are fitted.
For ceiling systems, insulation is commonly installed between joists or within the ceiling void. For wall or frame tie-in systems, insulation may be installed within the independent frame cavity.
The insulation should fit neatly without being over-compressed and should not interfere with the bracket or framing system.
Mark the MF ceiling, metal furring or frame layout across the installation area.
The correct spacing will depend on the metal framing system, board weight, ceiling design and acoustic specification. Always follow the project-specific system layout where provided.
Plan the layout so board edges are properly supported and so frame joints do not create weak or unsupported areas.
Mark the bracket positions according to the system design.
Add additional brackets where required around perimeters, frame junctions, openings, board edges and areas with heavier loading.
Do not guess bracket quantities where acoustic performance, fire performance or compliance is important. Use the correct system guidance or project-specific specification.
Fix each MuteClip MP Bracket to the structure using suitable fixings.
The brackets should be installed in the correct orientation so the MF or metal furring system can be connected properly.
Tighten fixings securely, but do not over-tighten in a way that compresses or damages the acoustic isolation element. The bracket should be stable and correctly seated.
Connect the compatible metal furring or MF ceiling system to the MuteClip MP Brackets.
Make sure the frame is properly seated, straight and level. The frame should be installed in the correct direction and spacing for the board specification.
Where frame sections need to be joined, overlap or join them according to the metal frame manufacturer’s guidance. Avoid unsupported joints and excessive overhangs.
Before installing plasterboard or acoustic boards, check the full bracket and frame layout.
Check that:
Correct any issues before fitting the board layers.
Install the plasterboard or acoustic board onto the metal frame using suitable drywall screws.
Only fix the board into the new metal frame. Do not screw through into the structure behind or above, as this can create an acoustic bridge and reduce performance.
Leave a small perimeter gap around the board layer so it does not touch the surrounding walls or structural elements.
If the system requires a second layer of plasterboard or acoustic board, install it after the first layer.
Stagger board joints between layers where possible. Use the correct screw length so the screws fix into the frame without passing through into the structure behind.
Additional board layers can improve acoustic mass, but they must be supported by the correct bracket and frame layout.
Once the board layers are installed, seal the perimeter gap with non-hardening acoustic sealant.
Seal around:
Good sealing is important because sound can pass through small air gaps.
After the acoustic sealant has cured, tape and finish the plasterboard joints as required.
The final finish may include jointing compound, skim plaster, paint or another suitable decorative finish.
Avoid fixing heavy items directly to the decoupled board layer unless the wall or ceiling system has been specifically designed to support them.
For MF ceiling installations, MuteClip MP Brackets are used as acoustic hangers to support the metal ceiling frame while reducing vibration transfer from the structure above.
Check the required ceiling drop, hanger layout, board weight and loading before installation. The MF ceiling system should be installed according to the metal frame manufacturer’s guidance and the acoustic system specification.
MuteClip MP can also be used where an independent acoustic frame needs to be braced or tied back to the surrounding structure.
This should be done carefully to avoid creating a rigid acoustic bridge. The bracket should provide isolated support while maintaining the decoupled design of the frame.
MuteClip MP Brackets can improve the acoustic performance of MF ceilings, metal furring ceilings and frame tie-in systems, but the final result depends on the complete build-up.
Existing structure, bracket spacing, frame layout, board mass, insulation, fixing method, perimeter sealing and flanking paths can all affect the result.
If you are unsure how to use MuteClip MP Brackets in your project, please contact our team before installation. We can help advise on the most suitable soundproofing system based on your ceiling, wall or frame design.
